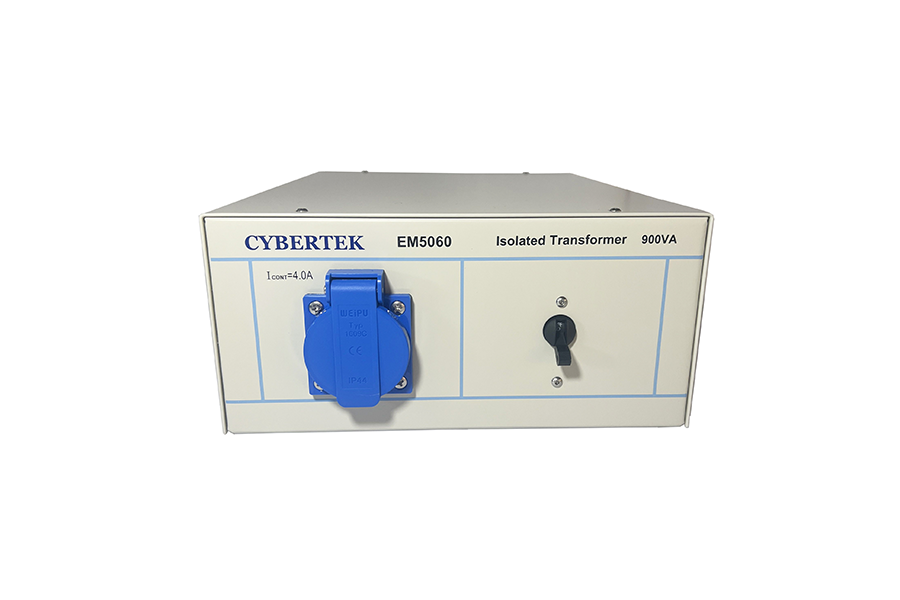

EM5060
EM5060

The maximum current 4A

The capacity of 900VA


瀏覽次數:685
說明書: 產品說明書

1. Summary

In the process of conduct testing, there’s always large leakage current due to the design theory of LISN, and requires good grounding to prevent possible danger. In the actual testing, isolation transformer is usually used to isolate the device and eliminate dangerous factors. EM5060 isolation transformer has capacity of around 900VA, air switch of threshold point 5A, which can fulfill most testing requirement.


1. Specification

Capacity

900VA

Max voltage

250V

Max current

4A

Input voltage frequency

50~60Hz

Air switch threshold value

5A

EUT power supply connector

National standard power supply plug

Operating temperature range

-1545

Storing temperature range

-4070

Size

338mmLength×237mm(Width)×133mmHeight

Weight

11.5kg

Related certification

EN61010-1:2010     EN61326-1:2013

EN61000-3-2:2014   EN61000-3-3:2013
